Introduction

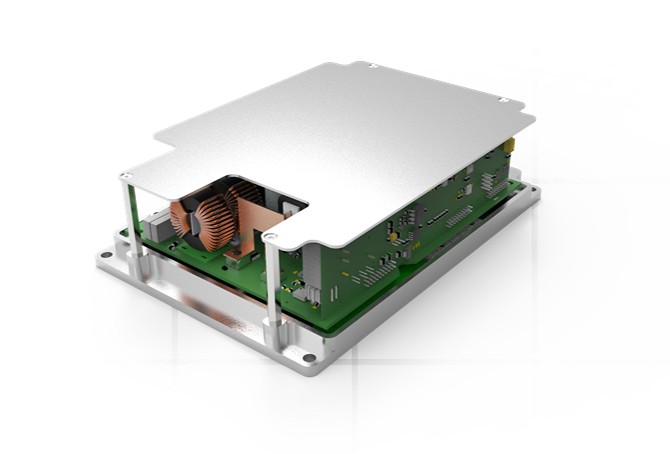

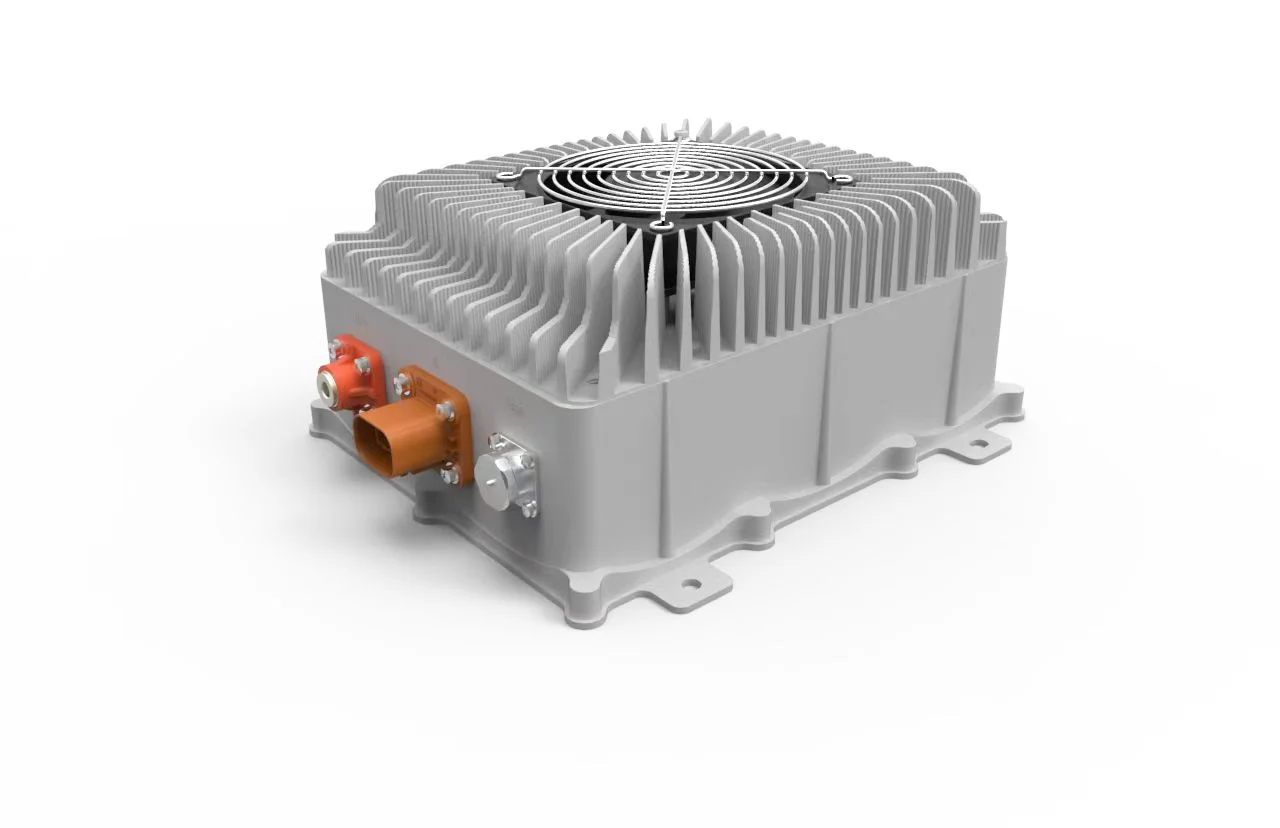

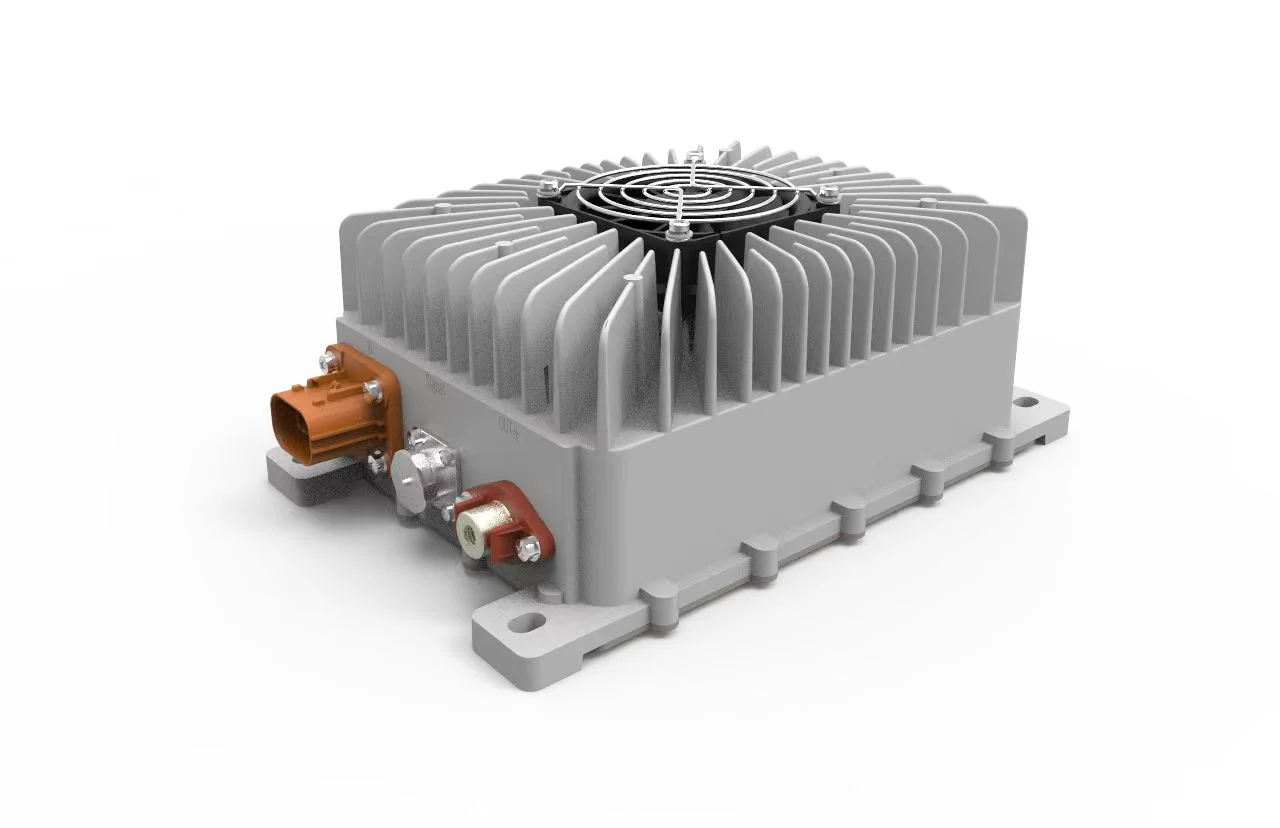

DCLV series isolated step-down DC/DC converter is specially developed for fuel cell system, low speed EV, etc. This product line is designed to provide 12 V or 24 V power supply for control system.
specs
| Type model | DCL-NT2010 | DCL-NT2000 | DCL-NT2080 |
| Rated output power | 1kW | 3 kW | 6 kW |
| Rated output voltage | 13.8 V/ 27 V | 13.8 V/27 V/54 V | 27 V/54 V |
| Rated output current | 85 A/45 A | 180 A/110 A/65 A | 220 A/110 A |
| Enable | CAN enable, input‑voltage enable | ||
| Rated input voltage | 48V,72V,96V,144V,360V,540V,720V | ||
| Input voltage range | 40V-105V,80V-200V,200V-450V,400-900V | ||
| Voltage regulation accuracy | < 150 mV | ||
| Efficiency | > 94% | ||
| Operating temperature | ‑20 °C~+65 °C | ||
| Volume(mm) | 225x160x75 | 273x174x109 | 305x245x126 |
| Weight(kg) | 3 kg | 4 kg | 7 kg |
| Modules can be paralleled for higher power, enclosure can be cutomized | |||
Features
High Power Density
Full-Sic design, enabling product miniaturization.
Outstanding Reliability
Automotive-grade design with IP67 protection rating; EMC complies with Class-B safety standards.
Excellent Energy Efficiency
Full-load efficiency reaches 96%-98%.
Long Service Life
Designed service life over 10 years.
Strong Compatibility
Wide constant-power voltage range, suitable for fast-charging, energy storage, industrial DC power supply and other scenarios.
Application
Computing‑power Data Center
Fuel‑cell EV Charger
Hydrogen Fuel Cell Bicycle Tricycle
Hydrogen Fuel Cell Forklift
Hydrogen Fuel Cell UAV
